    One Or Double Sides Penumatic Tip Dresser For Grinding Electrode Cap

    Ask Lasest Price
    Brand Name : BLM
    Model Number : BLM-2
    Price : USD200.-/set EXW
    Payment Terms : T/T, L/C, D/A
    Supply Ability : 100 sets per week
    Delivery Time : 7~10 working days
    • Product Details
    • Company Profile

    One Or Double Sides Penumatic Tip Dresser For Grinding Electrode Cap

    Penumatic Tip Dresser Using Compressed Air for Grinding Electrode Cap


    1. Main description


    Tip dresser includes tip dresser tool,cutter blade,cutter holder. All kinds of standard tip dresser cutter blade can be offered by our company. Customized tip dresser cutter according to your drawing can also be satisfied.It is powered by compressed air.Its rotating speed can be around 1300RPM.Tip dresser helps maintain weld consistency and quality in spot welding.


    2. Main Parameter of Double Sides Penumatic Tip Dresser


    Product Name

    Double Sides Penumatic Tip Dresser

    Model No

    BLM-2

    Application Method

    Hand hold

    Motive Power

    Compressed Air

    Grinding Cutter

    Normal

    Compressed Air Pressure

    0.4Mpa-0.6Mpa

    Grinding Pressure

    0.9-1.2KN

    Suitable Cap Tip Size

    Φ13-φ20

    RPM

    300-500RPM

    Torque

    110N,m

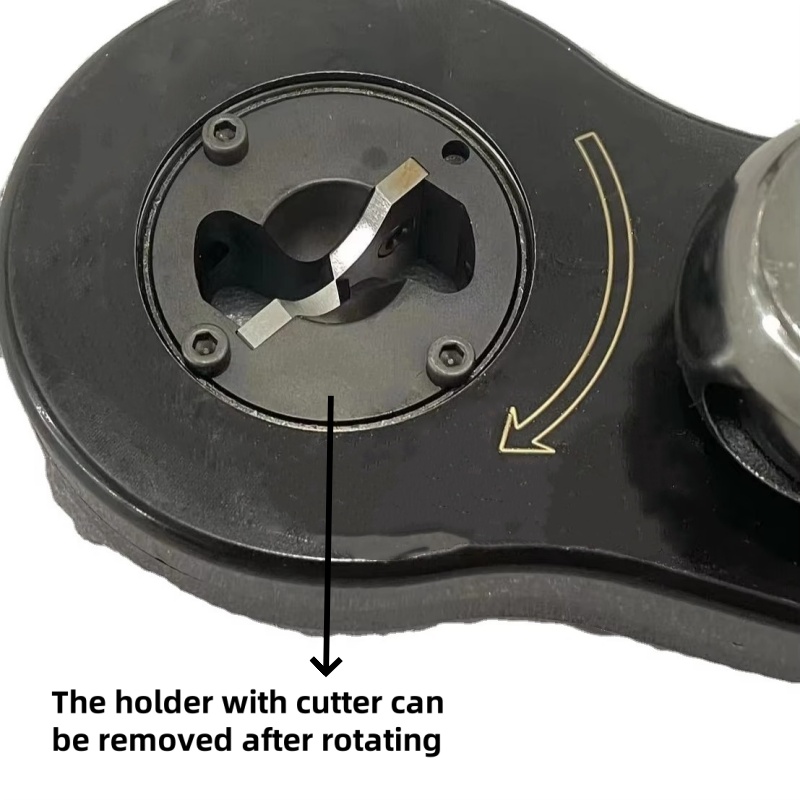

    3. Some dstails


    4. Grinding performance (Before and after)


    5. Certificates



    6. Packages
