    Plastic Machinery Twin Screw Extruder Barrel Screw Elements Corrosion Resistance

    Ask Lasest Price
    Brand Name : BLM-IV-1
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1000 per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    Plastic Machinery Twin Screw Extruder Barrel Screw Elements Corrosion Resistance

    High Performance Plastic Machinery Twin Screw Extruder Spare Parts Corrion Resistance Extruder Barrel Screw Elements
    1. Descriptions

    Welcome to inquire.We can supply single screw barrel/cylinder parallel twin screw barrel conical twin screw barrel bimetallic screw barrel nitrided screw barrel injection moulding machine screw barrel extruder machine screw barrel rubber machine screw barrel.

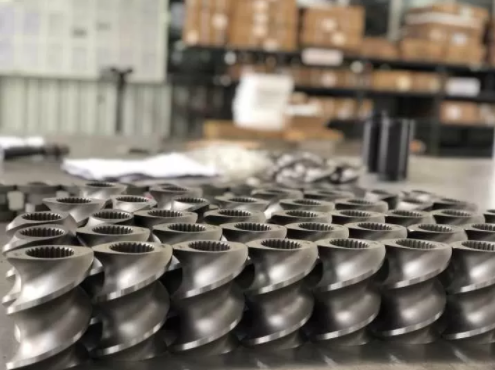

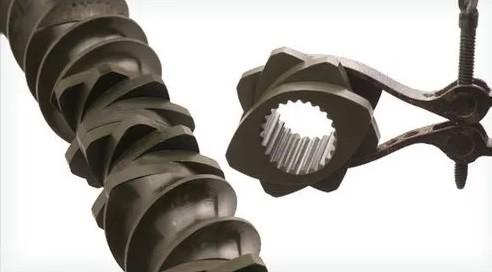

    Screw elements are the main working parts for twin screw extruder which determined the quality and output of plastic products.With high quality,the screw elements assure plastic molecular mixing,cutting,spreading as well as reacting among themselves etc.Extremely high self cleaning performance assure the high quality of the whole production line,for this,our company combiend our experience for years,the merits about foreign countries and the customer's use,then take them into action,designed all kinds of suitable processing screw element with reasonable parameters,high self cleaning performance,wear resistance,corrosion-resistance.
    We can satisfy your different material needs according to your different demands.





    2. Technical Specification

    Design DetailsScrew
    I TYPE:inside is water/oil cooling system
    II TYPE:outside is oil cooling system
    Barrel
    I TYPE:outside is air cooling system
    II TYPE:out side is copper pipe around cooling system
    AccessoriesStop ring+washers to adjust the space between screw and barrel
    Technical SpecificationMaterial:High quality 38CrMoAlA
    Process:Advanced nitriding & bimetallic process
    Hardness After Hardening & Tempering:HB280-320
    Nitrided Hardness:HV900-1000
    Nitrided Case Depth:0.45-0.8mm
    Nitrided Brittleness:Less than Grade 2
    Surface Roughness:Ra 0.4
    Screw Straightness:0.015mm
    Alloy Hardness:HRC 50-65
    Alloy Depth:0.8-2.0mm
    MOQ1 set(1 pair of screws and 1 piece barrel)
    TypeConcial Twin Screw and Barrel


    3. Brief Application
    Application: PVC
    Production output:130kg/h~150kh/h
    Lifetime: 20,000 hours

    Old order from: West Europe,East Europe,South America,South Africa,Middle


    4. Features:
    Accrurate size
    High capacity design
    Wear resisting material
    Easy maintenance



    5. Screw&barrel use material

    Raw materialThe finished product processing requirements
    38CrMoAIA, SACM645Nitriding treatment
    Cr12MoV, Cr12,Alloy steel
    38CrMoAIA, SACM645, 40Cr, AISI4140,
    42CrMo
    Alloy steel
    4Cr5MoSiV1,SKD-61,SKD-11Bimetallic of the inner hole centrifugal casting
    GHII3nature hard after high temperature






    Plastic Machinery Twin Screw Extruder Barrel Screw Elements Corrosion Resistance
