    Guide Pin KCF-M8-9.0 KCF-M8-8.0 KCF-M6-6.9 KCF-M6-6.5 KCF-M6-6.8

    Ask Lasest Price
    Brand Name : BLM-kcf-1
    Price : FobShanghai usd 3.5-5/pc
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 3000 pc/pcs per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    Guide Pin KCF-M8-9.0 KCF-M8-8.0 KCF-M6-6.9 KCF-M6-6.5 KCF-M6-6.8

    GUIDE PIN KCF-M8-9.0 , KCF-M8-8.0 , KCF-M6-6.9 , KCF-M6-6.5 , KCF-M6-6.8 , KCF-M6-7.0 , KCF-M6-7.1 , KCF-M8-8.8 )


    1 . Descriptions:

    Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry!


    Locator pin can be supplied in different materials: ceramic, KCF and stainless steel. KCF is a special heat treated alloy with a hard, insulating skin which lasts much longer than ceramic though with higher initial price. Senwang offers a range of standard designs while special designs can also be made to order.


    We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.


    2 . KCF Guide Pin Technical Specification


    Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

    KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

    Application: KCF guide pins are widely used on projection welding,nut welding,stud welding


    3 . Advantages:


    high temperature strength
    ▲ superior thermal shock resistance
    ▲ excellent wear resistance

    ▲ mechanical fatigue and creep resistance
    ▲ Excellent non-wetting property with good oxidation resistance

    ▲ It is convenient to process the rod shape, and the period will be shorter


    4 . KCF standard pin


    ABCDEFGLQR
    KCF-M4-(B)3.24~71052224312.59
    KCF-M5-(B)4.15~81062.522432313.3
    KCF-M6-(B)4.96~91072.5223323.515.5
    KCF-M8-(B)6.88~11128323334517.5
    KCF-M10-(B)8.510~1315103.524337730.5
    KCF-M7/16-(B)9.711~141612424339837.5
    KCF-12-(B)10.412~151612424339941

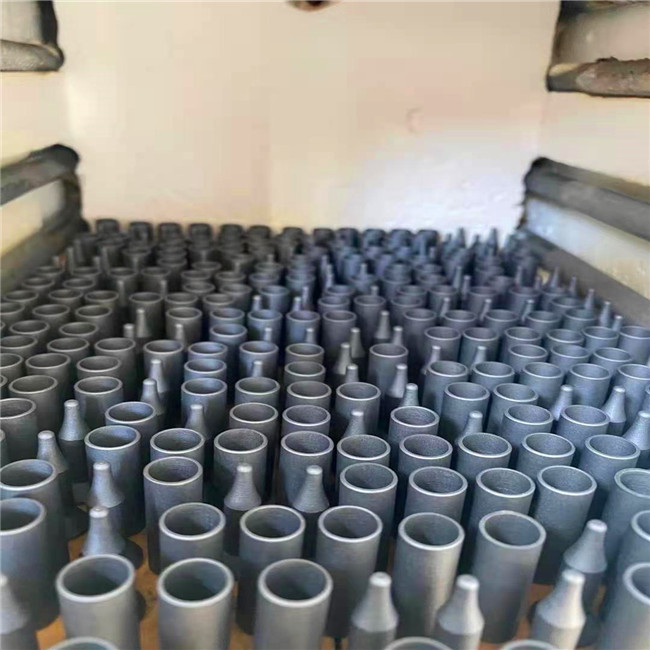

    5 . More pictures


    Quality Guide Pin KCF-M8-9.0 KCF-M8-8.0 KCF-M6-6.9 KCF-M6-6.5 KCF-M6-6.8 for sale
