    Plastic Machine Precise Foundation Fasteners Screws 20Mm

    20Mm Plastic Machine Precise Special Product Foundation Fasteners Screws Manufacturer


    1 . Description


    Screw element type for each function: Feeding, Melting, Mixing, Venting, Pressurization
    Screw Configuration
    means a structure composed of different combinations to achieve the desired performance,such as disperse, shear effect, solving the requirements of mixed materials as well as the production stability.
    Depending on the nature of work being carried out,there are Intake Zone,Conveying Zone,Melting Zone, Natural Venting Zone,Mixing Zone,Vacuum Venting Zone and Metering Zone.
    Different screw elements own different features in different extrusion process,we should choose and design the right screw elements based on different extrusion status in order to optimize the overall comprehensive performance in the extrusion process.



    2 . Technical Parameter

    Base Material1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ;
    3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140)
    Bimetallic Alloy Materials1)Fe-based alloy2)Ni-based alloy/Deloroalloy
    3)Co-based alloy4)NiCo-based alloy
    5)Tungsten carbide/Wolframcarbide
    Double-alloylevelLevel A - containing Tungsten of40%
    Level B - containing tungsten of 25%
    Level C - containing tungsten of15%
    Surface TreatmentHeat Treatment
    High FrequencyTreatment
    Nitriding treatment(120Hours):
    Depth of Nitrided Layer: 0.5-0.8mm
    Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°)
    HardChrome Plating treatment:
    Thickness of Hard Chrome Plating Layer:0.05-0.10mm
    Hardness ofHard Chrome Plating Layer: ≥950HV
    Nickel alloyplating.treatment:
    Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy)
    BimetallicScrew: Plasma Alloy Coating Spraying
    Depth of Bimetallic Layer: >2mm
    Hardness of Bimetallic Layer: HRC55°-72°
    Spraying corrosion wear-resisting dual metallayers

    3 . Comparsion of the output (LDPE)

    Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.

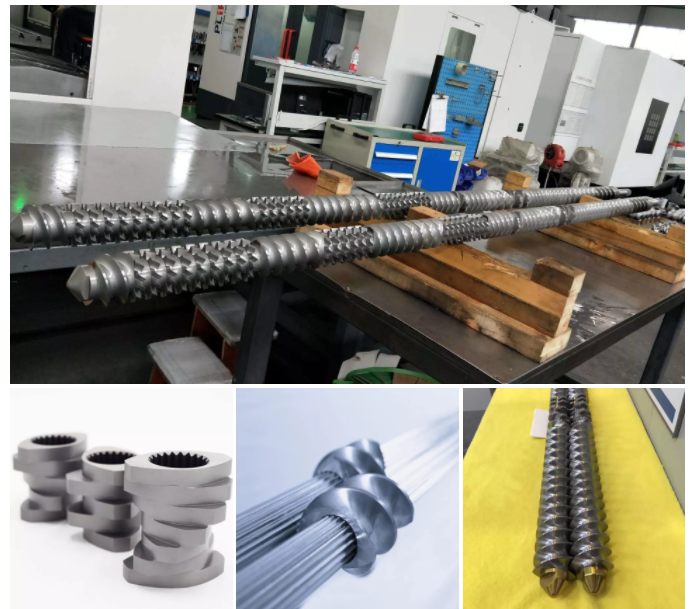

    4 . Parallel twin screw and barrel application


    Brand

    KEY ACTION

    Intake &Conveying Zone

    For feeding and conveying the raw materials to the extruder

    Melting Zone

    For heating the material to make some or all materials melt

    Natural Venting Zone

    For removing the volatile matter and moisture

    Mixing Zone

    For mixing the materials fully

    Vacuum Venting Zone

    For completely ruling out the volatiles and water to reach the desired state

    Metering Zone

    Metering Zone



    Bimetallic Treatment of Screw

    The bimetallic screw for extruder twin screw is a kind of screw spray welding a 2~3mm-thick alloy coat on the screw flight of output area for the screw . The Bimetallic treatment has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided screw.


    5 . As per customer's demand,we can also supply below:
    PVC/PE Film Blowing Screw;

    Blow Molding Screw;

    PS/PE/PP/ABS Sheet Extrusion Screw;

    PE Aluminum Plate;

    PPR Pipe Screw;

    EVA Extrusion Screw;

    HDPE High efficiency Screw;

    PET Straps Screw;

    XPS/EPE Foamed Screw;

    Granulation Screw,Vented single screw etc.
