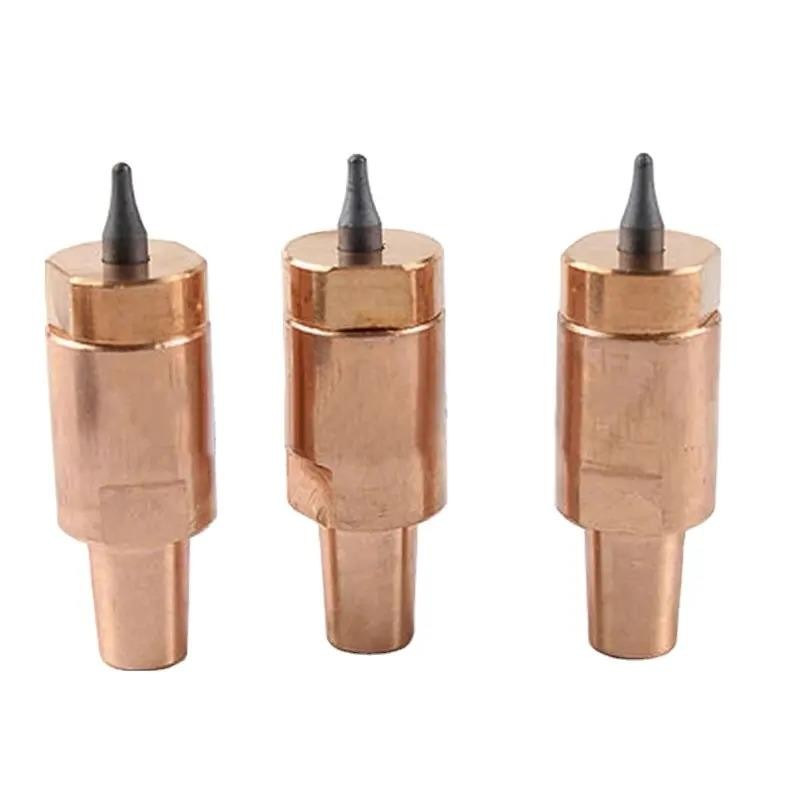

    Stud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear Resistance

    Ask Lasest Price
    Brand Name : BLM-kcf-1
    Model Number : B-pin
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 3000 pc/pcs per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    Stud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear Resistance

    Stud Welding Electrode For Projection-Welding Screws And Bolts CuCrZr Resistance Welding

    1 . Descriptions:


    Product Name
    Electrode with KCF pin
    Certification
    ISO9001
    Brand
    BLOOM
    OEM
    Accepted
    Material
    Copper with KCF material
    Warranty
    1 Year
    Type
    Welding Accessories
    Color
    Coppery
    Size
    Customized


    Bloom welding is the manufacturer of the KCF bars,and we also make the KCF guide pins.We offer different sizes guide pin,locating pin,bushing,sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.We not only can make the standard size and also can make the KCF pins according to your drawings.Welcome your inquiry.


    2. Properties

    Code

    Composition(wt%)

    Tensile strength(N/mm2)

    Yield strength(N/mm2)

    Elongation(%)

    Features

    Application

    KCF

    Cr20,Al3,Fe Bal

    539

    392

    15

    Oxidation resistant

    Brazing jigs,Guide pins for projection welding


    We offer various sizes of KCF guide pin and KCF sleeves. The standard kcf pins are always in stock.Also supply customized pins according to your drawing.With excellent insulation performance and long-life,our kcf guide pins are directly or indirectly used on GM,VW,TOYOTA etc.automotive welding factory.

    Stud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear Resistance

    KCF Guide Pin Technical Specification

    Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

    KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

    Application: KCF guide pins are widely used on projection welding,nut welding,stud welding

    KCF Guide Pins Advantage:

    • Good insulation performance

    • Excellent wear resistance ability

    • High temperature anti-oxidation performance

    • Good heat shock performance

    What is KCF Guide Pins?

    KCF material is a special metal material.Through special heat treatment process and process temperature range of 1000-1500 degree adjustment,the surface can generate a layer of 10-32μm thick high-quality insulation layer,the insulation layer and the alloy matrix has a good ability to combine.So that the material takes into account the good wear resistance and high insulation resistance.The material in the mechanical processing after formation of a variety of parts,after cleaning and heat treatment with insulation,wear and anti-oxidation of the three functions of the product.This material is mainly used in resistance welding equipment.

    We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.

    2 . More pictures

    Stud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear ResistanceStud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear Resistance
    Stud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear ResistanceStud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear ResistanceStud Welding Electrode For Projection Welding Screws And Bolts CuCrZr Wear Resistance
