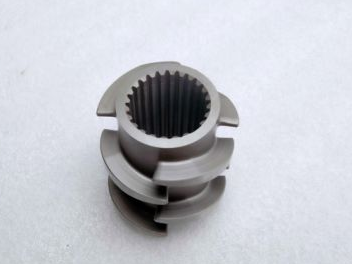

Wear-Resistant Spare Parts Buss Plk 46mm Extruder Screw Elements For Buss Ko-Kneader Extruder

Description

The Buss Ko-Kneader Extruder is a type of extrusion equipment used in the plastics and rubber industries for compounding, mixing, and processing of high-viscosity materials. It was developed by the Swiss company Buss AG and is known for its unique kneading disc design, which provides excellent mixing performance, efficient heat transfer, and low shear stress on the material being processed.

The Ko-Kneader Extruder operates with a reciprocating screw that moves back and forth in a specially designed barrel, while the kneading discs rotate at a different speed. This process generates high shear forces and intense mixing action, resulting in a homogenous blend of materials.

The Buss Ko-Kneader Extruder can be used for a wide range of applications, including compounding of thermoplastic elastomers (TPE), hot-melt adhesives, masterbatches, polymer alloys, and high-filled systems. Its advanced technology and performance have made it a popular choice for various industries, including automotive, construction, packaging, and medical products.

Screw Type	Buss PLK 46MM
Vacuum Quenching	By Ourself
Supplier Screw Design	Yes
Hardness	58-62HRC
Suface Treatment	Polishing Sand Blasting
Warranty	1 Years
Range	15.6-400mm
Heat Treatment	By Ourself
Screw Element Precision	Higher than Nanjing Factory
Materials	SKD11 WR5 WR45 WR14 Stainless Steel HIP Nickel Alloy 38CrMoAla 316L ......
Application Industries	Chemical /Food /Phamaceuticals /Powder Coating/ Midical

Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris

Range of Work
Diameter of 12-350mm

Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting

We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.

Our Main Materials and Their Application:

For Wear Application:

Tool Steel: W6Mo5Cr4V2

PM-HIP Materials: SAM10, SAM26, SAM39, CPM10V, CPM9V

For Corrosion Application:

Nitrided Steel: 38CrMoAlA

PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V

For Wear & Corrosion Application:

PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V

Other Materials: 316L HC276 etc.

Standard Barrel Parameter Table (selection table)
Model	Size(mm) W*H*L	Hole Diameter(mm)	Distance(mm)
BM-20	115*105*132	φ23	18.4
BM-30	135*115*120	φ30.6	26
BM-35	140*120*140	φ36	30
BM-36	160*140*150	φ36	30
BM-40	175*145*160	φ41.6	34.5
BM-50	190*150*190	φ51	42
BM-52	200*155*210	φ52	43
BM-53	210*160*220	φ53.3	48
BM-58	220*175*240	φ58	48
BM-60	210*170*240	φ60	52
BM-65	210*170*240	φ63	52
BM-75	260*200*290	φ71.8	60
BM-85	280*215*320	φ81.9	67.8
BM-92	310*240*360	φ92	78
BM-95	310*240*360	φ94	78
BM-110	330*240*420	φ109	91.5
BM-125	390*290*500	φ125	98
BM-135	370*300*410	φ134	110
