    Customization Kcf Guide Pin Used On Projection Welding Nut Welding Stud Welding

    Ask Lasest Price
    Brand Name : BLM-kcf-1
    Price : FobShanghai usd 3.5-5/pc
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 3000 pc/pcs per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    Customization Kcf Guide Pin Used On Projection Welding Nut Welding Stud Welding

    Kcf Pin Kcf Guide Pin Location Pin Locator Pin Nut Locator Pilot Pin Welding Pin Cetering Pin


    1 . Descriptions:

    Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry!KCF guide pin(location pin) is a kind of insulated welding guide pins made from KCF special alloy material.It has a special insulated surface and this insulated surface is a film growing from alloy base inside,not an external insulation coating. KCF guide pins(location pins)had been being used for locating threaded or non-threaded nuts to eliminate arcing or powerful electric current threaded damage,protecting screw thread during the resistance welding process.


    Locator pin can be supplied in different materials: ceramic, KCF and stainless steel. KCF is a special heat treated alloy with a hard, insulating skin which lasts much longer than ceramic though with higher initial price. Senwang offers a range of standard designs while special designs can also be made to order.


    We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.


    2 . KCF Guide Pin Technical Specification


    Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

    KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

    Application: KCF guide pins are widely used on projection welding,nut welding,stud welding


    3 . Advantages:


    ▲high temperature strength
    ▲ superior thermal shock resistance
    ▲ excellent wear resistance
    ▲ mechanical fatigue and creep resistance
    ▲ Excellent non-wetting property with good oxidation resistance

    ▲ It is convenient to process the rod shape, and the period will be shorter


    4 . KCF standard pin


    ABCDEFGLQR
    KCF-M4-(B)3.24~71052224312.59
    KCF-M5-(B)4.15~81062.522432313.3
    KCF-M6-(B)4.96~91072.5223323.515.5
    KCF-M8-(B)6.88~11128323334517.5
    KCF-M10-(B)8.510~1315103.524337730.5
    KCF-M7/16-(B)9.711~141612424339837.5
    KCF-12-(B)10.412~151612424339941

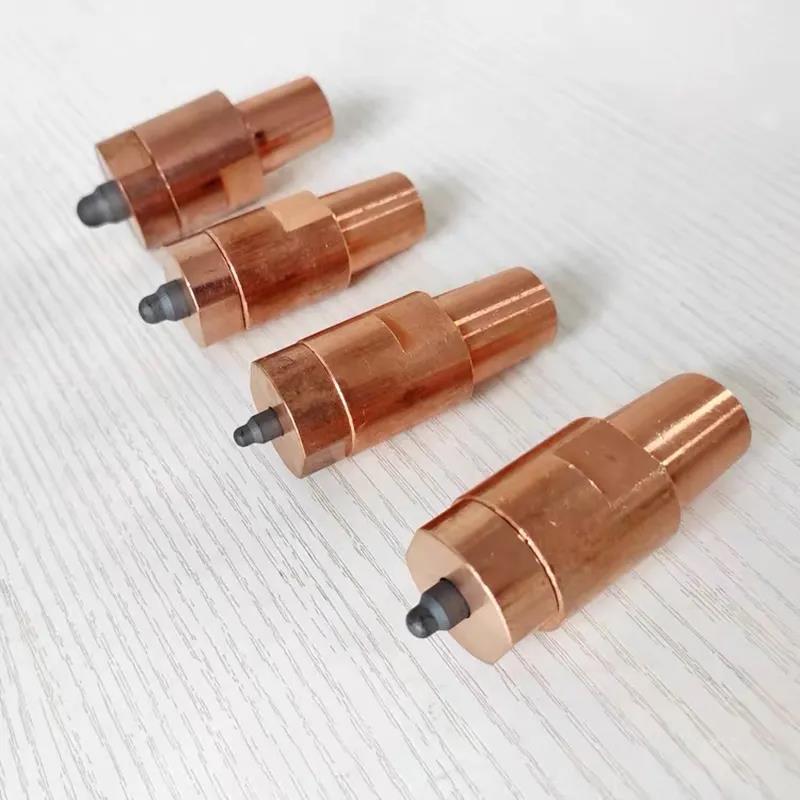

    5 . More pictures


    Quality Customization Kcf Guide Pin Used On Projection Welding Nut Welding Stud Welding for sale
