UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field

    Buy cheap UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field from wholesalers

    Buy cheap UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field from wholesalers
    • Buy cheap UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field from wholesalers

    UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field

    Ask Lasest Price
    Brand Name : BLM-1H-1
    Price : FobShanghai usd 2.8-6.0/kg
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 300 Ton/Tons per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field

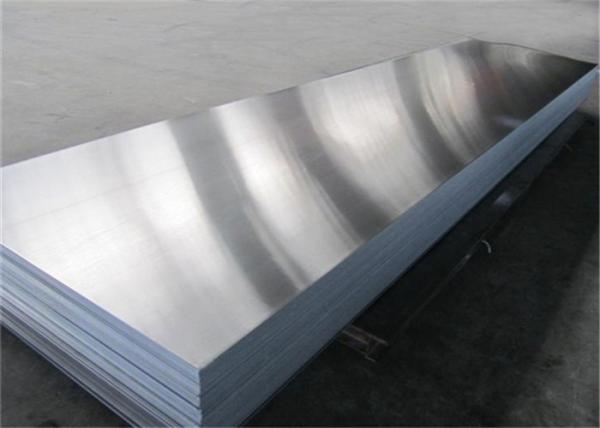

    15 5 PH plate


    The 15-5 PH alloy was designed to have greater toughness than 17-4 PH. The 15-5 PH alloy is martensitic in structure in the annealed condition and is further strengthened by a relatively low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 PH is also referred to as XM-12 in some specifications.


    Introduction:

    15-5 PH stainless steel was designed to have greater toughness than 17-4 PH. The 15-5 alloy is martens tic in structure in the annealed condition and is further strengthened by a relatively low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 is also referred to as XM-12 in some specifications. wuxi tp inox co.,ltd also offer 15-5ph UNS S15500 Grade XM-12 Round Bars. Round Bars are steel or metal bars that are produced by one or more cold finishing processes. The processes outlined below are known as Cold Finish processes or the end products are known as cold finished because there is no or very little heat applied in the entire operation of converting them from hot rolled bars (also known as black bars) to 15-5ph UNS S15500 Grade XM-12 Round Bars. 15-5ph UNS S15500 Grade XM-12 Round Bars is decaled pulled through Tungsten Carbide or High Speed Steel Die, straightened & cut-to-length; Improves dimensional tolerance and shape, straightness, surface finish, strength and machine ability. Remove bar surface of 15-5ph UNS S15500 Grade XM-12 Round Bars with revolving cutting tool, rotate bar through rolls to straighten and polish, then cut-to-length.

    Related Specifications:

    AMS 5659, AMS 5862, AMS 5862J Type 2
    ASME SA 564, ASME SA 693, ASME SA 705
    ASTM A 564, ASTM A 693, ASTM A 698, ASTM A 705
    W. Nr./EN 1.4545

    ASTM-A564 (XM-12), BAC 5439 Rev H Class A Type1, BMS 7-240 (Boeing)
    BSS7055 Rev A
    STD 2154
    UNS S15500

    Chemical Requirement

    UNS


    Designations

    TypeComposition,% max
    CMnPSSiCrNiCu
    S15500XM-120.071.00.040.031.014-15.53.5-4.52.5-4.5

    Note*Cb+Ta:0.15-0.45 % Fe:Balance

    Mechanical Requirments:

    UNSTypeConditionSolution Treatment

    Tensile Strength

    ksi

    Yield Strength

    ksi

    Hardness

    HRC

    Hardness

    HB

    min.min.max.max.
    S15500XM-12A

    1900+/-25°F(1040+/-15°C)

    cool as

    ......38363

    Quality UNS S15500 Grade 15 5 Ph Alloy Plate ASTM Standard For Aviation Field for sale
