    UNS N08810 Incoloy Alloy 800 Bar Bright Surface With Excellent Corrosion Resistance

    Ask Lasest Price
    Brand Name : BLM-IY-1
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 300 Ton/Tons per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    UNS N08810 Incoloy Alloy 800 Bar Bright Surface With Excellent Corrosion Resistance

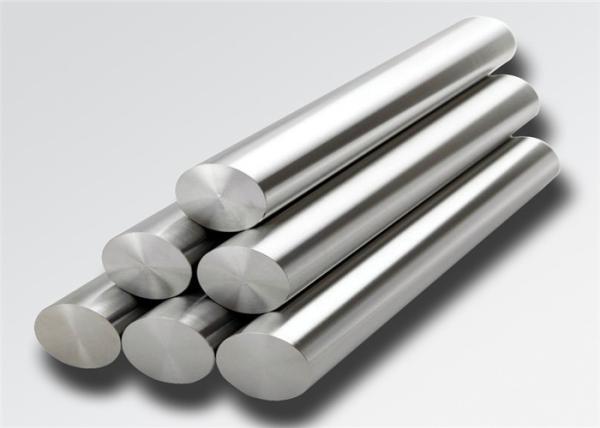

    Incoloy 800 bar


    1. Chemical composition


    Steel GradeCFeNiCrAl+TiTiAl
    800H0.05-0.1039.5min30.0-35.019.0-23.00.3-1.20.15-0.6-0.15-0.60
    800HT0.06-0.1039.5min30.0-35.019.0-23.00.85-1.20.25-0.60

    0.25-0.60



    2. Density and Melting point


    Density8.14 g/cm³
    Temperature21-93°C
    Melting point14.0um/m°C

    3. Mechanical Properties


    Finish Condition

    Tensile Strength

    (Ksi/Mpa) Min

    Yield Strength

    (Ksi/Mpa) Min

    Elongation

    (%) Min

    Annealed65Ksi/448Mpa25Ksi/172Mpa30%

    Standard: ASTM B163-04 Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes


    Steel Grade: UNS N08810 NS1101 Incoloy 800 1.4558.


    Size Range:

    OD: 6-219mm, Wall Thickness: 1.0-12.7mm


    Incoloy 800/800H800HT Chemical composition


    Alloy%NiCrFeCMnSiCuSAlTi
    800Min.30190.150.15
    Max.3523balance0.11.510.750.0150.60.6
    800HMin.30190.050.150.15
    Max.3523balance0.11.510.750.0150.60.6
    800HTMin.30190.060.150.15
    Max.3523balance0.11.510.750.0150.60.6
    AI+Ti: 0.85-1.20

    Incoloy 800/800H 800HT Physical properties

    Density8.0 g/cm³
    Melting point1350-1400 °C

    Incoloy 800/800H/800HT Alloy minimum mechanical properties in the room temperature

    AlloyTensile strengthYield strengthElongation
    Rm N/mm²R P 0. 2N/mm²A 5 %
    80050021035
    800H45018035

    800/800H/800HT Characteristic as below
    1. Excellent corrosion resistance in the water media of the extremely high temperature of 500°C.
    2. Good stress corrosion resistance
    3. Good machining


    Incoloy 800/800H/800HT Metallurgical structure
    800H is face-centered cubic lattice structure. very low carbon centent and increased Ti:C rate
    improve the stability of the structure, anti-allergy , and anti-intergranular corrosion. Low temperature annealing of 950°C ensure the fine grain structure.
